Anti-vibration mounts
Anti-vibration mounts (rubber-metal silent blocks) for mounting engines, pumps, fans and machines – more than 600 stock items. Cylindrical mounts come as type 1 bolt–bolt, type 2 bolt–nut, type 3 nut–nut, type 4 bolt–rubber and type 5 nut–rubber, plus buffer, bell, through-hole, bush, spherical and concave mounts.
The size is given as diameter / height and thread, e.g. diameter 40 mm / height 30 mm, M8x23 – from 6 mm diameter with M3 thread to 100 mm with M16 thread. Brands BAK, GeTech and Rubena / Gumokov. Mounts in stock are shipped immediately, delivery within 1–2 days.
Frequently asked questions
What is the difference between anti-vibration mounts type 1 to 5?

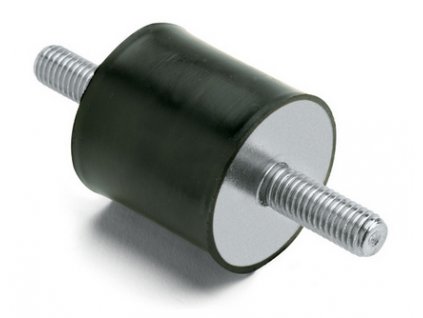

The types of cylindrical mounts differ in their ends. Type 1 has a bolt on both sides, type 2 a bolt and a nut, type 3 a nut on both sides. Type 4 has a bolt and only rubber on the other side, type 5 a nut and rubber, which is why types 4 and 5 are often used as buffers and stops. Choose the type according to how you attach the mount to the machine and the frame.
How do I find the size of an anti-vibration mount?
We state the size as diameter / height of the rubber part and thread, for example diameter 40 mm / height 30 mm, M8x23 (thread M8 with a length of 23 mm). We stock mounts from 6 mm diameter with M3 thread up to 100 mm diameter with M16 thread. Measure the diameter and height of the rubber and the thread size and length. If you cannot find the size you need, send us the designation and we will check whether we can supply it.
How do I choose an anti-vibration mount by load?
The load capacity of a mount depends on its size and on the rubber hardness, the GeTech catalogue lists hardnesses of 45, 57 and 70 Shore A. Divide the machine weight by the number of mounting points and choose a mount whose maximum load is higher than the load per piece. The maximum load values are given in the GeTech and BAK catalogues.
What can replace an anti-vibration mount of another brand?
What matters is the end type, the diameter and height of the rubber part, the thread size and length and the rubber hardness, not the brand. A mount with the same dimensions and similar hardness from BAK, GeTech or Rubena / Gumokov is a dimensional replacement. Besides cylindrical mounts we also stock buffer, bell, through-hole, bush, spherical and concave mounts.
How fast can you deliver anti-vibration mounts?
We stock more than 600 anti-vibration mounts for engines, pumps, fans and machines from BAK, GeTech and Rubena / Gumokov. Mounts in stock are shipped immediately and delivery takes 1–2 days. Current availability is shown directly for each size. For mounting one machine, always order the same type and hardness for all mounting points.
