Piston seal 95 x 80 x 11 K19 095-080 NBR / PTFE+bronze / POM, Kastas
Code: SKL_M082460Related products
Product detailed description
The special version of seal K19L is a variant of seal K19 for low-temperature applications (-40/+120 °C).

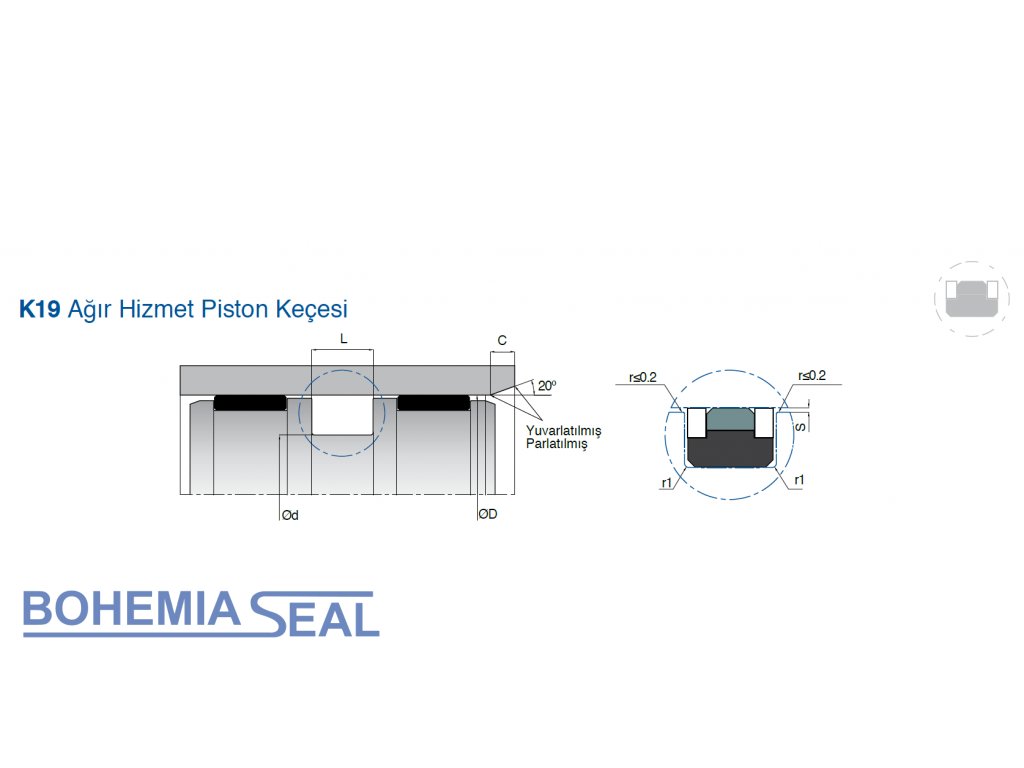

The double-acting compact piston seal K19 has a robust design including an elastomer energiser, a PTFE ring and two thermoplastic back-up rings. This is the preferred design for a wide range of mobile hydraulic applications with low friction, low extrusion and long service life.
Benefits
- Low coefficient of friction
- Good wear resistance
- High extrusion resistance
- Design working at varying pressures
- Long service life
Field of application
- Construction machinery
- Excavators
- Presses
- Injection moulding machines
- Heavy-duty hydraulic cylinders
Dimensions: 95x80x11, 95-80-11, 95/80/11, 95 x 80 x 11 mm, 80x95x11, 80-95-11, 80/95/11, 80 x 95 x 11 mm.
Also searched as: U-cup, seal, U-cups, seals, hydraulic U-cup, hydraulic seal, Manschette, Dichtung, piston U-cup seal, piston seal, piston seals, Kolbendichtung, Kolbenmanschette, NBR, nitrile, perbunan, buna-N, PTFE, teflon, POM, acetal, delrin, bronze.
Manufacturer designation: K19 095-080, K19 095 080, K19-095-080, K19 095/080.
Additional parameters
| Category: | Piston and rod seals |
|---|---|
| ? Inner diameter of the seal: | 80 |
| ? Outer diameter of the seal: | 95 |
| ? Seal height: | 11 |
| ? Seal model: | K19 |
| ? Seal material: | NBR / PTFE+bronz / POM |
| Úroveň kvality: | výkon |
Kastas (Kastas Sealing Technologies) is a Turkish manufacturer of hydraulic and pneumatic seals. Bohemia Seal is a distributor of the Kastas brand.
What you will find from Kastas:
- piston, rod and symmetrical seals (U-cups) and compact piston seals
- single and double wiper seals
- guide rings and guide strips
- back-up rings and rotary seals
- static seals including DIN 11851 union seals
More profiles and sizes are in the Kastas catalogue. Choose a seal by size (rod × groove × height) and profile. We can also help based on another manufacturer designation. We will confirm the delivery time and price on request.
