Piston seal 63 x 51 x 20.5/4.2 K518 063-051 NBR / TPE / POM, Kastas
Code: SKL_M060120Related products
Product detailed description

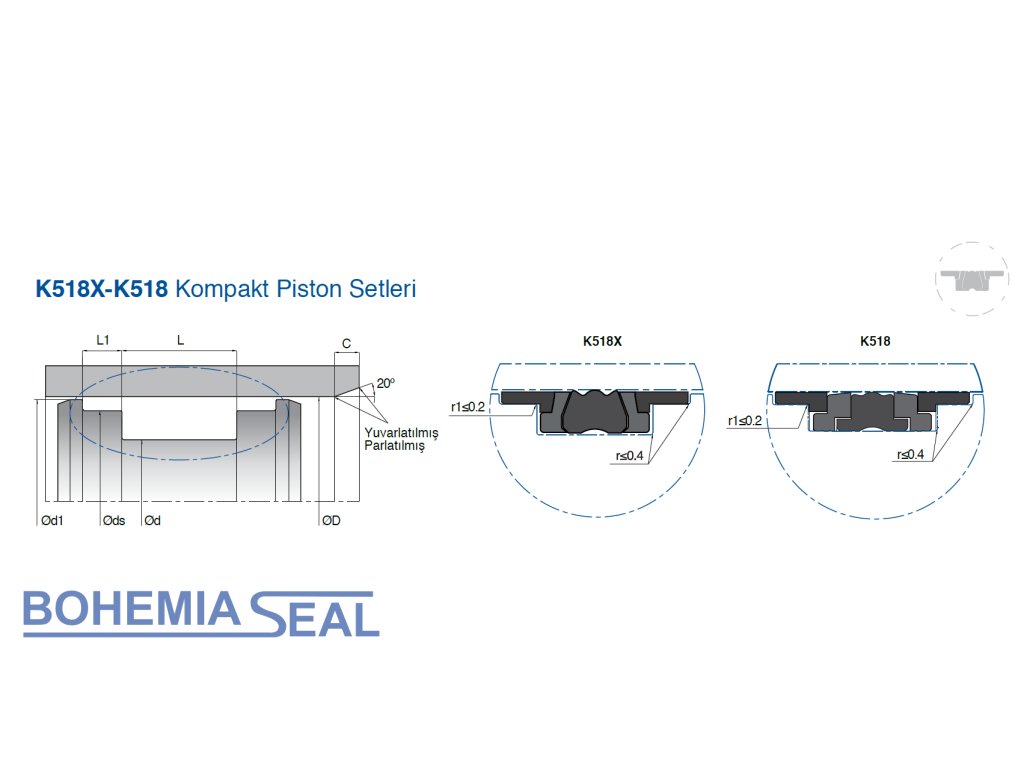

The double-acting piston seal K518 is a piston seal consisting of one NBR profile ring, two thermoplastic elastomer back-up rings and two glass-reinforced POM guide rings. K518 is widely preferred in mobile machinery, where the glass-reinforced POM guide rings provide better load-bearing properties in cylinders with longer strokes.
Benefits
- Excellent sealing performance and low friction thanks to the special design
- Excellent load capacity thanks to the special reinforced guide ring material
- No additional guide ring required in low and medium-load applications thanks to the compact design
- Simple groove in a one-piece piston
- long service life and easy installation
Field of application
- Agricultural machinery
- Construction machinery
- Mobile machinery
- Loading platforms
- Forklift trucks
The double-acting piston seal K518X is a high-performance compact piston seal consisting of one NBR profile ring, two thermoplastic elastomer support rings and two glass-reinforced PA guide rings. Among similar double-acting piston seals, K518X introduces a new design of TPE back-up rings with special geometry that increases extrusion resistance under the variable pressures of mobile hydraulic applications, and glass-fibre-reinforced PA guide rings that provide higher load capacity at higher temperatures.
Benefits
- Maximum extrusion resistance thanks to special TPE back-up rings
- Better resistance to high temperatures thanks to PA guide rings
- Advanced performance in long-stroke cylinders
Field of application
- Agricultural machinery
- Construction machinery
- Mobile machinery
- Loading platforms
- Forklift trucks
Dimensions: 63x51x20.5, 63-51-20.5, 63/51/20.5, 63 x 51 x 20.5 mm, 51x63x20.5, 51-63-20.5, 51/63/20.5, 51 x 63 x 20.5 mm.
Also searched as: U-cup, seal, U-cups, seals, hydraulic U-cup, hydraulic seal, Manschette, Dichtung, piston U-cup seal, piston seal, piston seals, Kolbendichtung, Kolbenmanschette, NBR, nitrile, perbunan, buna-N, POM, acetal, delrin, TPE.
Manufacturer designation: K518 063-051, K518 063 051, K518-063-051, K518 063/051.
Additional parameters
| Category: | Piston and rod seals |
|---|---|
| ? Inner diameter of the seal: | 51 |
| ? Outer diameter of the seal: | 63 |
| ? Seal height: | 20.5 |
| ? Seal model: | K518 |
| ? Seal material: | NBR / TPE / POM |
| Úroveň kvality: | výkon |
| The item has been sold out… | |
Kastas (Kastas Sealing Technologies) is a Turkish manufacturer of hydraulic and pneumatic seals. Bohemia Seal is a distributor of the Kastas brand.
What you will find from Kastas:
- piston, rod and symmetrical seals (U-cups) and compact piston seals
- single and double wiper seals
- guide rings and guide strips
- back-up rings and rotary seals
- static seals including DIN 11851 union seals
More profiles and sizes are in the Kastas catalogue. Choose a seal by size (rod × groove × height) and profile. We can also help based on another manufacturer designation. We will confirm the delivery time and price on request.
