Piston seal 18 x 10.7 x 3.2 K41-018 PTFE+bronze / NBR, Kastas
Code: SKL_M007550Product detailed description

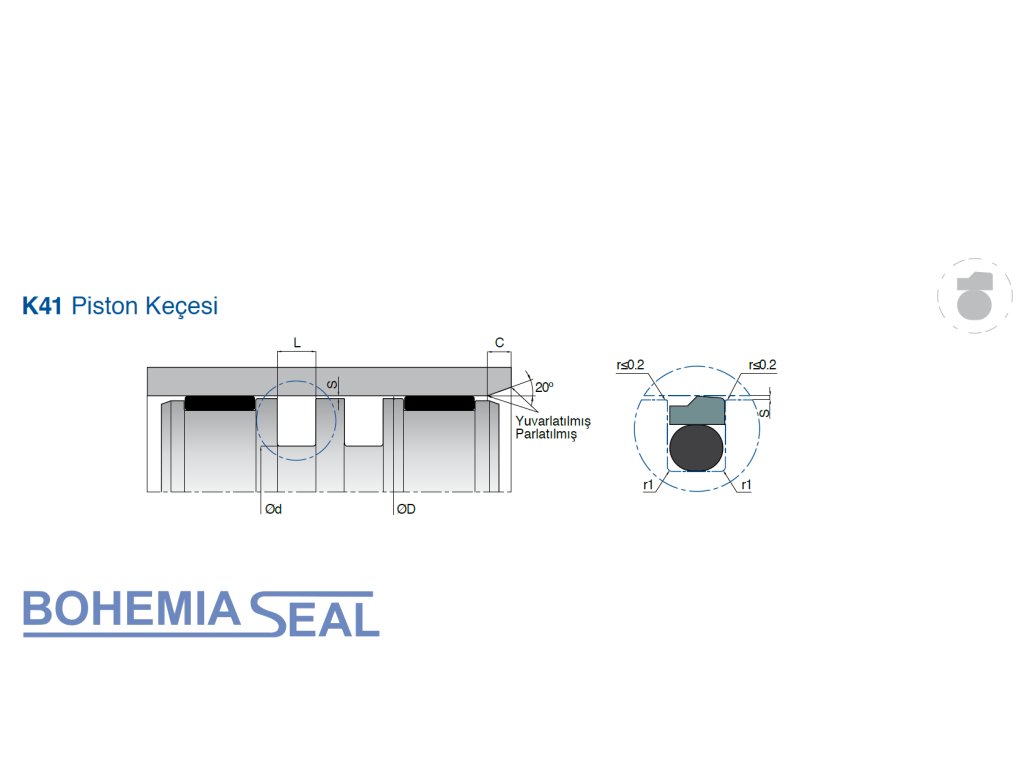

The single-acting piston seal K41 consists of a PTFE sealing ring and an elastomer O-ring energiser.
Benefits
- Low friction and no stick-slip
- Excellent dynamic and static sealing
- Long service life
- High extrusion resistance
- No hydrodynamic pressure
- High speeds and frequencies
- Designed for grooves according to ISO 7425/1
Field of application
- Cranes
- Injection moulding machines
- Hydraulic press cylinders
- Forklift trucks
- Construction machinery
- Servo cylinders
- Hydraulic hammers
- Wind turbine
- Automotive industry
Dimensions: 18x10.7x3.2, 18-10.7-3.2, 18/10.7/3.2, 18 x 10.7 x 3.2 mm, 10.7x18x3.2, 10.7-18-3.2, 10.7/18/3.2, 10.7 x 18 x 3.2 mm.
Also searched as: U-cup, seal, U-cups, seals, hydraulic U-cup, hydraulic seal, Manschette, Dichtung, piston U-cup seal, piston seal, piston seals, Kolbendichtung, Kolbenmanschette, NBR, nitrile, perbunan, buna-N, PTFE, teflon, bronze.
Manufacturer designation: K41-018, K41 018, K41018.
Additional parameters
| Category: | Piston and rod seals |
|---|---|
| ? Inner diameter of the seal: | 10,7 |
| ? Outer diameter of the seal: | 18 |
| ? Seal height: | 3,2 |
| ? Seal model: | K41 |
| ? Seal material: | PTFE + bronze / NBR |
| Úroveň kvality: | výkon |
Kastas (Kastas Sealing Technologies) is a Turkish manufacturer of hydraulic and pneumatic seals. Bohemia Seal is a distributor of the Kastas brand.
What you will find from Kastas:
- piston, rod and symmetrical seals (U-cups) and compact piston seals
- single and double wiper seals
- guide rings and guide strips
- back-up rings and rotary seals
- static seals including DIN 11851 union seals
More profiles and sizes are in the Kastas catalogue. Choose a seal by size (rod × groove × height) and profile. We can also help based on another manufacturer designation. We will confirm the delivery time and price on request.
| Manufacturing company : | Kastaş Sealing Technologies Europe GmbH |
|---|---|
| Address : | Robert-Bosch-Str. 11-13, 25451 Quickborn, Německo |
