guide ring 96 x 100 x 10 POM, K69, Kastas (K69-100/3)
Code: SKL_GUIR007480
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description

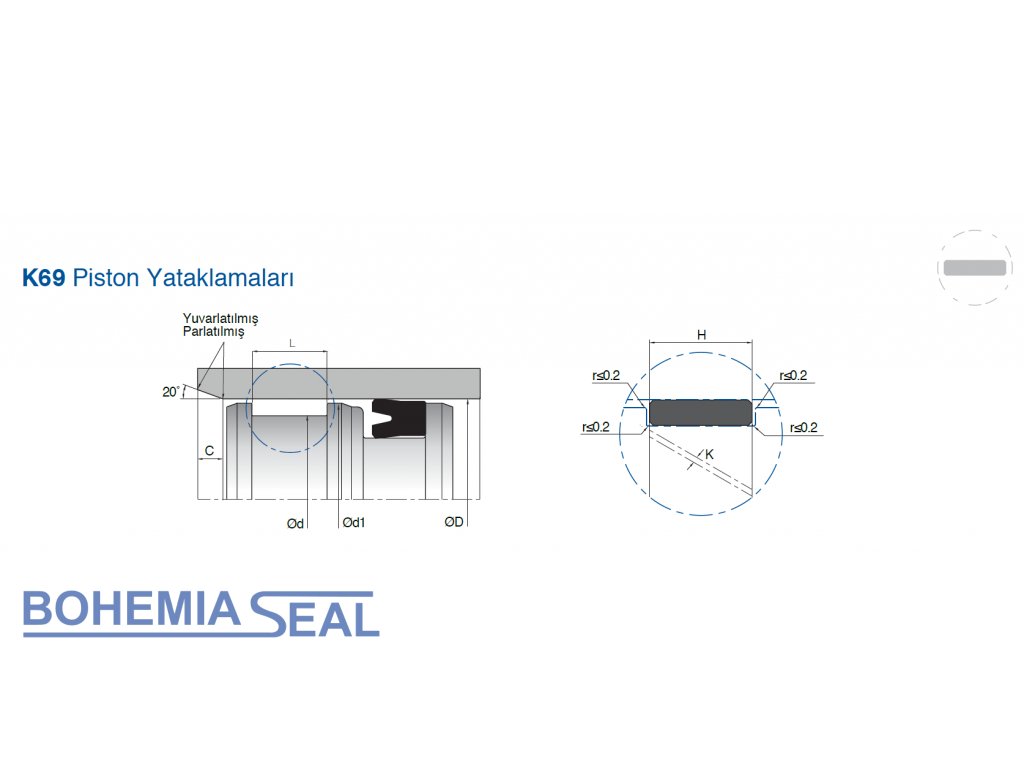

K69 is a glass fiber reinforced POM guide ring designed for general use in hydraulic applications. The composition of glass fibers in the material increases the carrying capacity of the guide element.
Advantages
- Easy Installation
- High dimensional stability in the operating temperature range
- Wide range of dimensions
Use area
- Agricultural machines
- Mobile Machines
- Industrial cylinders
- Light and medium cylinders
Additional parameters
| Category: | Guide rings |
|---|---|
| ? Thickness of the guide ring: | 2 |
| ? Guide ring tape height: | 10 |
| ? Inner diameter of the guide ring: | 96 |
| ? Outer diameter of the guide ring: | 100 |
| ? Guide tape / guide ring model: | K69 |
| ? Guide tape material/ guide ring material: | POM |
| Úroveň kvality: | výkon |
| Katalogové číslo: | K69-100/3 |
