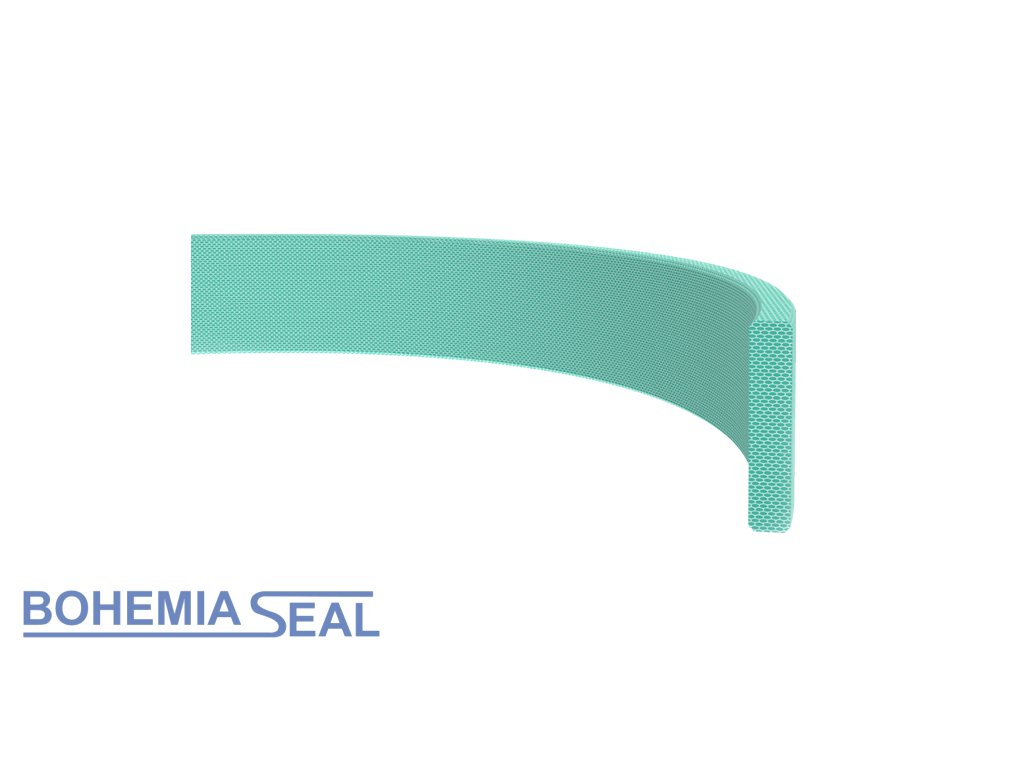

guide ring 85 x 90 x 15 Polyester fabric-phenolic resin-PTFE, K73, Kastas (K73-085/1)
Code: SKL_GUIR006600
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description
K73 piston and rod guide rings are composite guides made of synthetic fabric and polyester resin that provide high load capacity, designed for use in piston and rod applications in hydraulic systems.
Advantages
- Low friction coefficient
- High payload
- High dimensional stability in the operating temperature range
- Low bloat
- Wide range of dimensions
Region use
- Mobile Machines
- Mining industry
- Excavators
- Ship hydraulics
- Presses
- Heavy cylinders
- Standard Industrial Cylinders
Additional parameters
| Category: | Guide rings |
|---|---|
| ? Thickness of the guide ring: | 2,5 |
| ? Guide ring tape height: | 15 |
| ? Inner diameter of the guide ring: | 85 |
| ? Outer diameter of the guide ring: | 90 |
| ? Guide tape / guide ring model: | K73 |
| ? Guide tape material/ guide ring material: | Polyesterová tkanina-fenolová pryskyřice-PTFE |
| Úroveň kvality: | výkon |
| Katalogové číslo: | K73-085/1 |
| The item has been sold out… | |
