Copper flat gasket - annular ring, outer diameter 15mm, inner diameter 9mm, thickness 2mm, DIN 7603 A
Code: SKL_GAS001320
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description

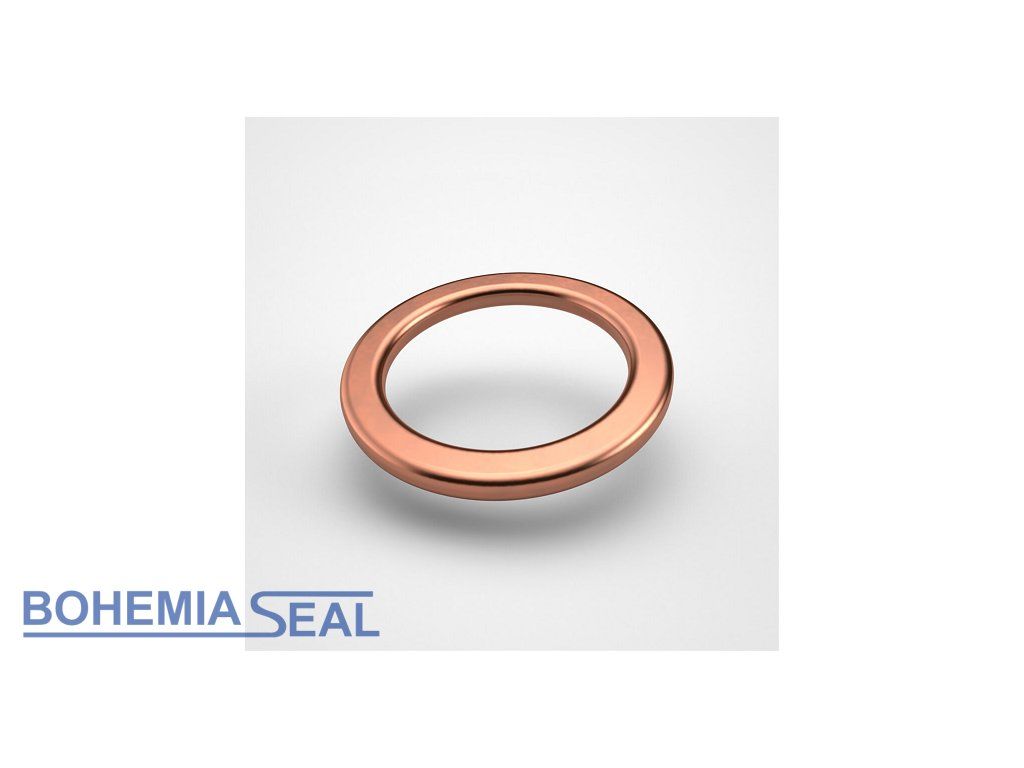

Copper sealing washer – flat ring. It is most often used as a crush seal under screws or wherever the copper washer is compressed against harder steel, thus creating a seal. The seal is very often single-use, when reused it may leak.
Dimensions: 9x15x2, 9-15-2, 9/15/2, 9 x 15 x 2 mm, 15x9x2, 15-9-2, 15/9/2, 15 x 9 x 2 mm, inner diameter 9 mm, outer diameter 15 mm, thickness 2 mm, M9, for bolt M9.
Also searched as: copper sealing washer, copper washer, copper ring, copper seal, sealing washer, flat gasket, spacer ring, copper sealing ring, Kupferdichtring, Dichtring, DIN 7603.
Additional parameters
| Category: | Flat gaskets |
|---|---|
| ? Inner diameter of the flat seal: | 9 |
| ? Outer diameter of the flat seal: | 15 |
| ? Strength of the flat seal: | 2 |
| ? Flat seal material: | Cu - Měď |
| Úroveň kvality: | výkon |
