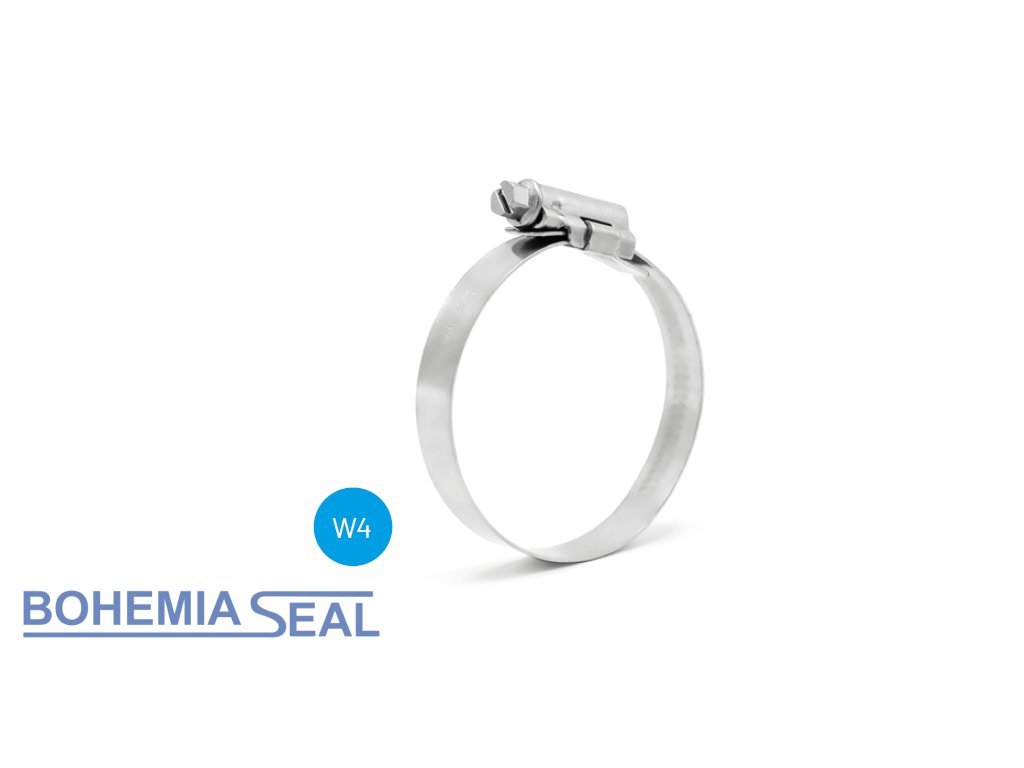

Hose clamp 90-110/12 W4 ASFA-S , MIKALOR 03014596 , stainless steel AISI 304
Code: SKL_HS008710
Fast delivery
Optimized Inventory
Guaranteed quality
We cooperate with renowned
manufacturers all over the world
Technical support available
We cooperate with manufacturers' engineers to solve technical problems
Product detailed description
DIN 3017. The ASFA-S W1 hose clamp fully complies with DIN 3017 and the EU Directive 2002/95/EC.This hose clamp represents the latest stage in the development of the ASFA 12 mm series.
One of the main improvements of this version is the lateral offset of the tape thread, which reduces the tendency of the tape end to ride out of the housing off-centre when tightening.
Thanks to the combination of the bushing, locking system and bolt location in the bushing, this buckle offers superior performance at the same torque ratings.
Specially recommended for industrial applications.
Maximum application pressure may vary depending on the type of hose used and the geometry of the end cap.
Additional parameters
| Category: | Hose clamps |
|---|---|
| ? Hose clamp model: | The Snail |
| ? Hose clamp diameter: | 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100, 101, 102, 103, 104, 105, 106, 107, 108, 109, 110 |
| ? Hose clamp material: | W4 (all stainless steel AISI 304) |
| Úroveň kvality: | značkové |
| Manufacturer ID: | 0301459-6 |
| Šírka pásky: | 12mm |
